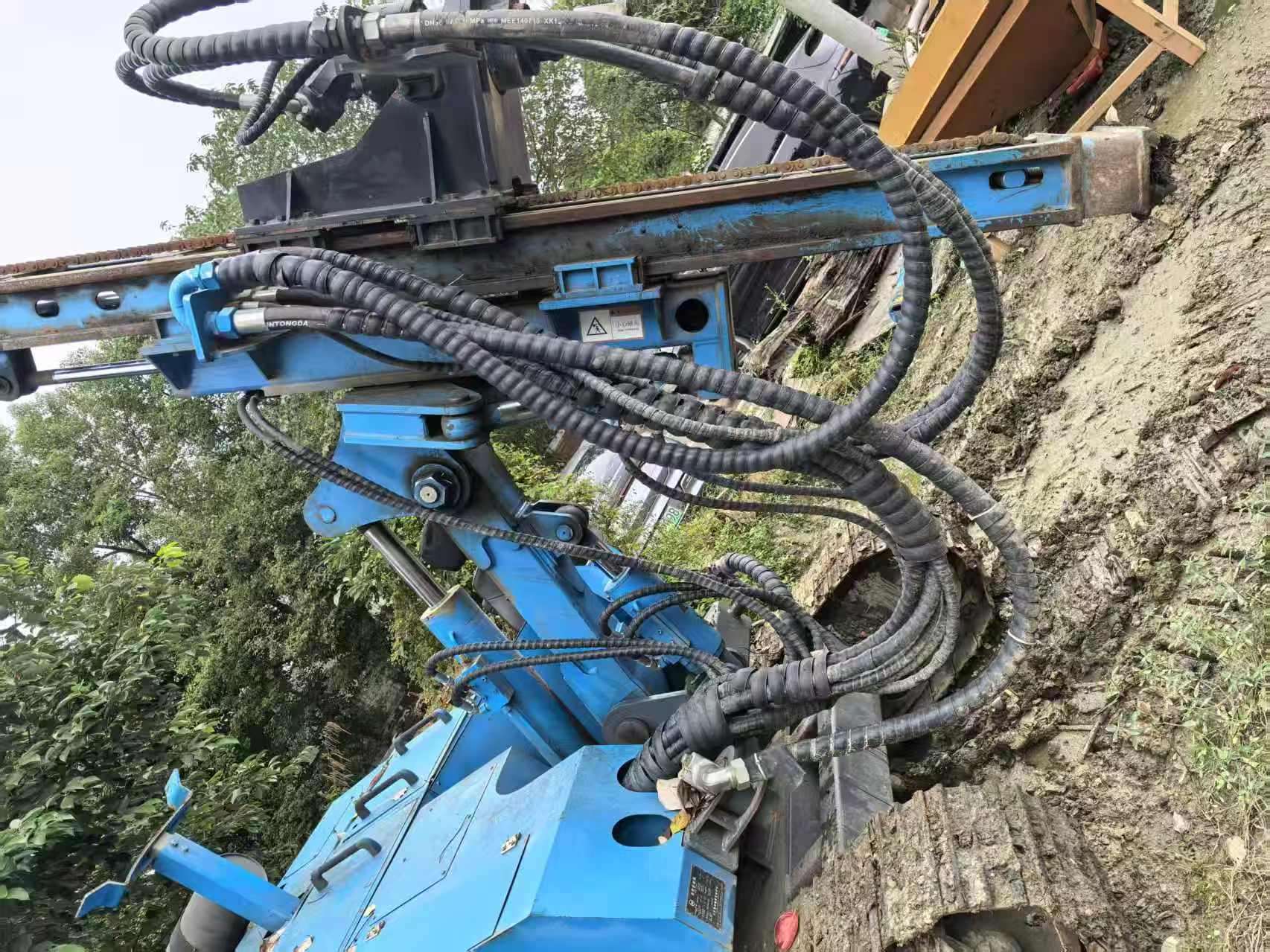

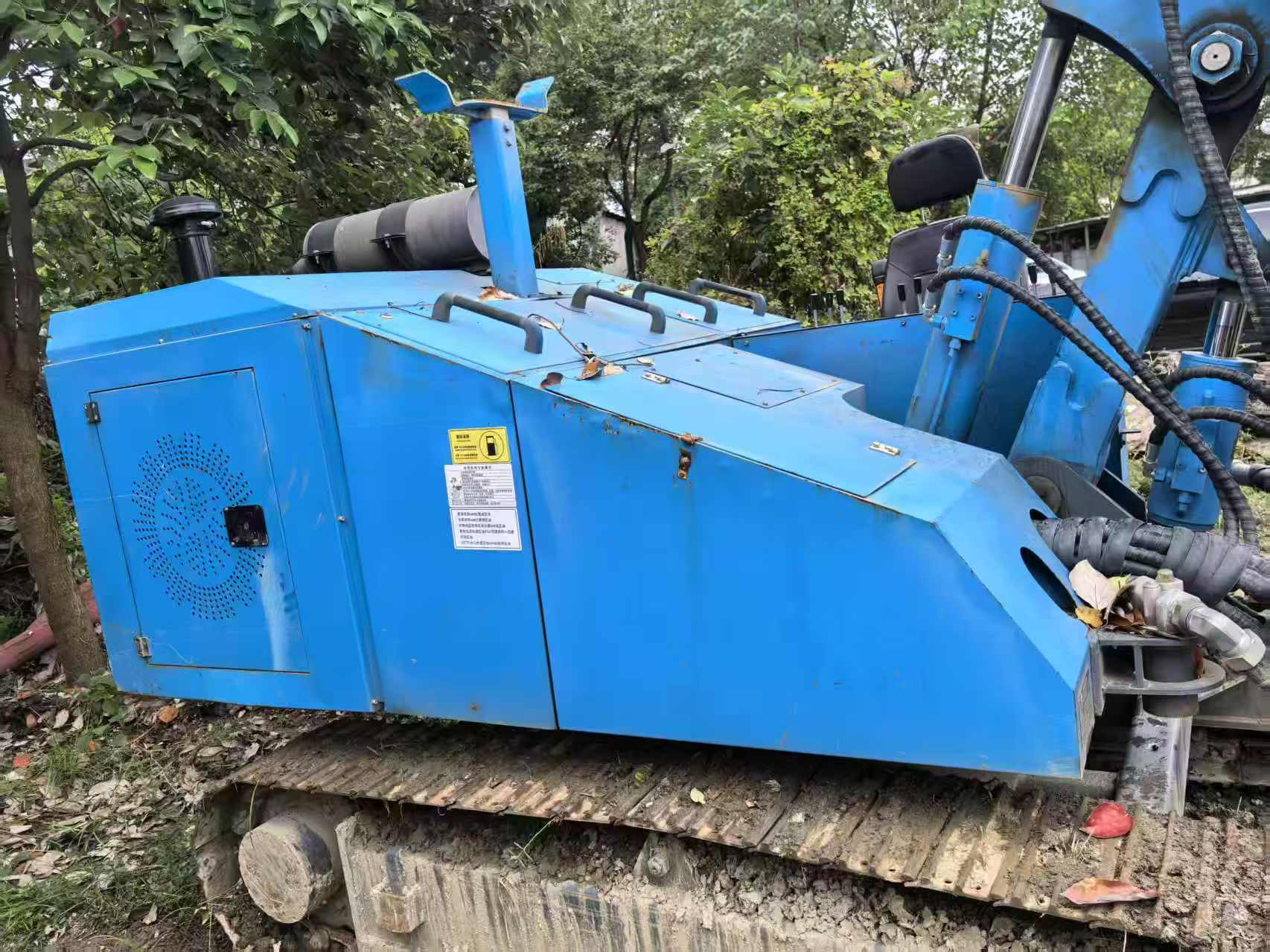

Used HWL300R PV piling drilling rig for sale

Used HWL300R PV piling drilling rig for sale

Drill depth: 0-40m
Pipe Length: 3m
Manufacture Year: 2023
Engine Power: 85kw
If you are interesting at Used HWL300R PV piling drilling rig for sale,you can contact us with the inquiry button.
INQUIRY WhatsApp

Description of Used HWL300R PV piling drilling rig for sale

Product Highlights:

Features: Solar pile driving and highway guardrail pile installation.

Application Areas: Drilling and pile driving for non-highway guardrails; pile driving for solar power plants; pile driving in various other sites (such as farms, pastures, orchards, etc.).

Power Configuration: Equipped with a reasonably powered, high-performance diesel engine, providing a strong power source for construction operations. The reliability of the power system and fuel efficiency have been significantly improved.

Hydraulic System: Features an advanced hydraulic system with high-quality hydraulic components and strict assembly processes, ensuring high efficiency and durability.

Design: The overall frame structure is well-crafted and made entirely from national standard materials. It offers high strength, excellent stability, and follows an industrial aesthetic design, providing a more spacious workspace for operators.

Production Process: The production process is optimized, with wear-resistant parts treated through heat treatment. Welding techniques are meticulous, and stress-relief treatments are applied to the entire frame to minimize deformation. The inspection equipment is comprehensive.

Main Specifications:

Dimensions (L*W*H) :

4420*1920*4900-7900 (working mode) mm
4500-7500*1920*2800 (transport mode)

Hydraulic Hammer Model: AR75/85/100 (optional) mm
Hydraulic Hammer Flow: 50-110 L/min
Impact Frequency: 350-800 bpm
Tool Diameter: 75/85/100 (optional) mm
Max Travel Motor Torque: 11500 N·m
Max Pile Height: depends on slide rail mm
Slide Rail Tilt Angle: left 5, right 5º
Frame Rotation Angle: 360º
Hydraulic System Pressure: 22 MPa
Gear Pump Displacement: 40+40+25 ml/rev
Travel Speed: 3 km/h
Total Weight: 7145 kg
Engine Power: 85 kW
Engine Rated Speed: 2600 rpm
Track Plate Width: 350 mm
Single Track Links: 42 sections
Total Travel Motor Displacement: 53 ml/rev
Travel Motor Rated Pressure: 30 MPa
Travel Motor Reduction Ratio: 1:54.4
