Small movable diesel water well drilling rigs for sale from China manufacturer

Water Well Drilling Rigs

water well <a href=https://www.gzpearldrill.com/en/Drilling-Rig.html target='_blank'><a href=https://www.gzpearldrill.com/en/Drilling-Rig.html target='_blank'>Drilling Rig</a></a>s for sale

Water Well Drilling Rigs description

This small movable diesel water well drilling rig machine is mainly used for geothermal drilling, farm irrigation, house yard, gardens, and water well drilling, drilling diameter is 70-350mm, and the drilling depth is 80m to 100m. The water well drilling rig machine also can be used in small building piling, like farmhouses or factories, the drilling diameter can reach 500mm and the depth can be more than 200 meters.

Technical Parameter Of Water Well Drilling Rigs

Rig model	ZSJD-100 type	Motor Power	4000W
Drill pipe diameter	42mm	Drilling and crushing method	Impact Rotary
Dimensions	80cm80cm245cm	Drilling depth	100-200M
Drill pipe length	1.5m	Pump power	2.2KW
Rig weight	200KG	Drilling diameter	Within 400mm
Drill pipe replacement method	Thread button (automatic double thread)	Machine Height	2 meters
Applicable voltage	220V/380V	Force	1000KG
Rig model	ZTJD-150 type	Motor Power	4000W
Drill pipe diameter	50mm	Drilling and crushing method	Impact Rotary
Dimensions	90cm90cm245cm	Drilling depth	100-200M
Drill pipe length	1.5m	Pump power	2.2KW
Rig weight	250KG	Drilling diameter	Within 400mm
Drill pipe replacement method	Thread button (automatic double thread)	Machine Height	2 meters
Applicable voltage	220V/380V/ Gasoline / Diesel	Force	2000KG
Rig model	ZTJD-180 type	Motor Power	4000W
Drill pipe diameter	50mm	Drilling and crushing method	Impact Rotary
Dimensions	100cm100cm245cm	Drilling depth	100-200M
Drill pipe length	1.5m	Pump power	2.2KW
Rig weight	290KG	Drilling diameter	Within 500mm
Drill pipe replacement method	Thread button (automatic double thread)	Machine Height	2 meters
Applicable voltage	220V/380V/ Gasoline / Diesel	Force	2000KG

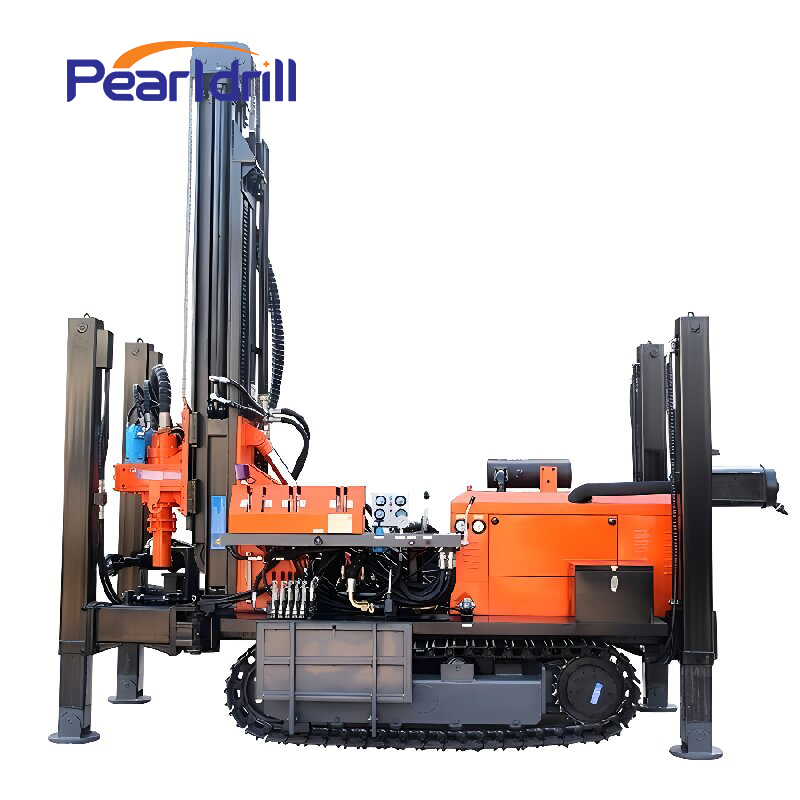

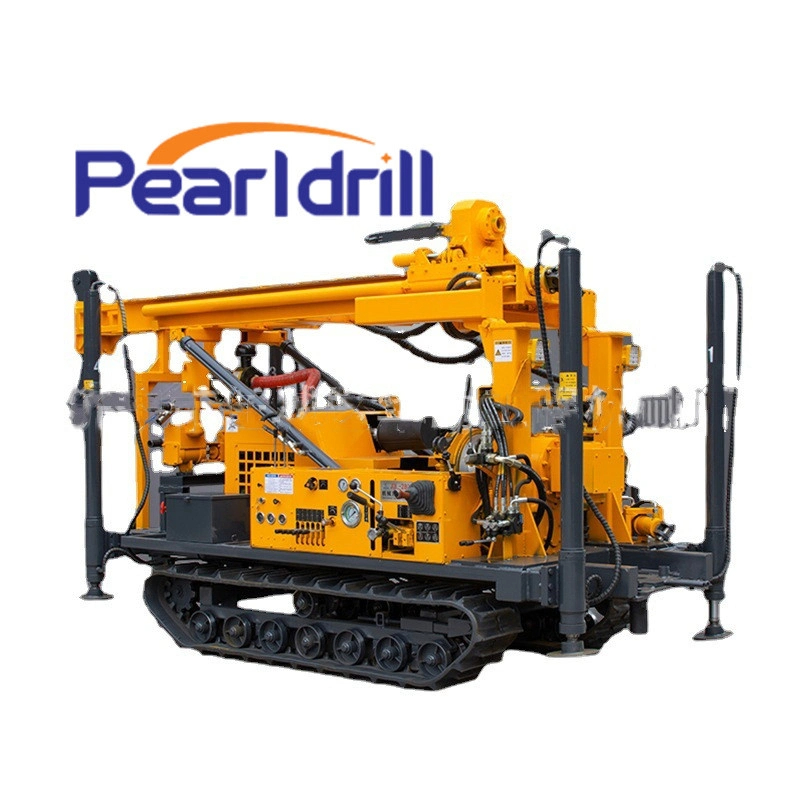

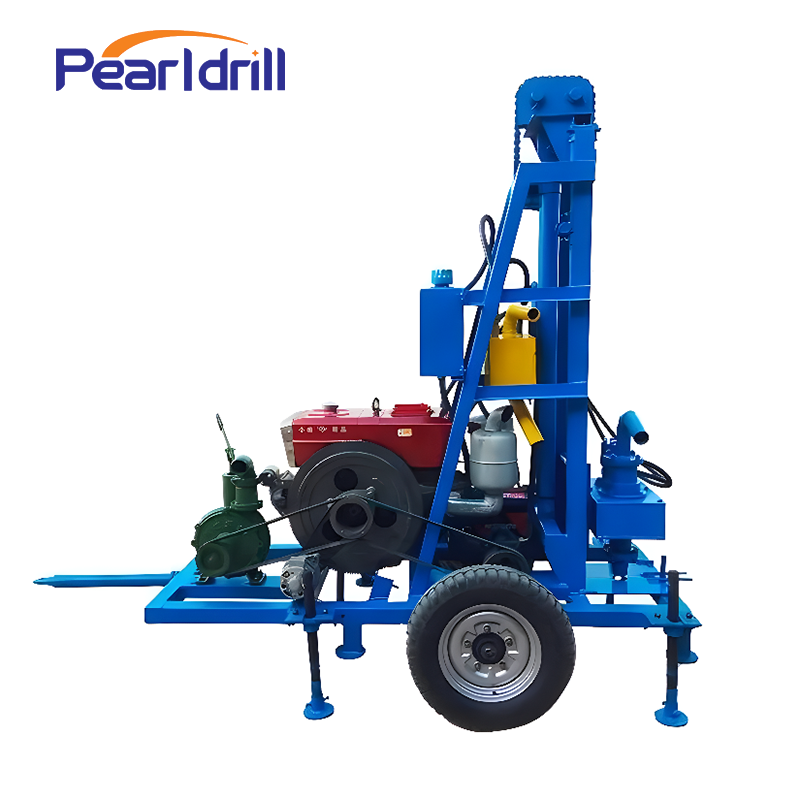

Product Details Of Water Well Drilling Rigs

water drilling rig

small water well drill rig

diesel movable water well drilling rigs

Product Features of Water Well Drilling Rigs

1、This small drilling machine occupies a small area (1 square meter), and a height of 2 meters stand, the job can be installed in less than ten minutes. can be used at indoor and outdoor sites.

2、The good pipe is fully enclosed, and the shallow layer has no leakage, which can ensure the health and safety of drinking water.

3、Research and Develop by ourselves, it breaks difficult problems that are easy to drill and hard to disassemble.

4、All the lifting, loading, and unloading of drill pipe is mechanized, time-saving, labor-saving, and easy to operate.

Product Advantages of Water Well Drilling Rigs

1、 Light weight, energy saving.
2、Patented product, unique design, and simple drilling structure;
3、Easy to transport and can learn how to handle the machine in a short time;
4、Can drill through hard stratum, unless thick rock layer ;
5、One-person operation, reduce the labor intensity ;
6、High efficiency and work fast.
