Single Grade ZJ Slurry Pump PD50ZJ-I-A50 ZJ

Description of Single Grade ZJ Slurry Pump PD50ZJ-I-A50 ZJ

Walker ZJ Series slurry pump are a new high-efficiency energy-saving anti-wear pump. The series pumps are innovative in hydraulic design, structural design and wear-resistant materials. The utility model has the advantages of high efficiency, energy saving, small vibration, low noise, reliable operation, long service life and convenient maintenance. The comprehensive performance of pumps in the domestic leading level, most of the pump efficiency indicators in the international advanced level.

Widely used in electric power, metallurgy, coal, building materials and other industries conveying solid particles slurry. Such as power plant hydraulic ash, metallurgical ore dressing plant slurry transport, coal washing plant slurry and heavy medium transport.

Feature:

1. Metal Material: anti-wear, abrasion resistance
2. High efficiency, long life, smooth operation.
3. Drive mode: directly connect the drive (DC), Fluid coupling drive (HC), belt drive (CR, CL, ZV, CV).

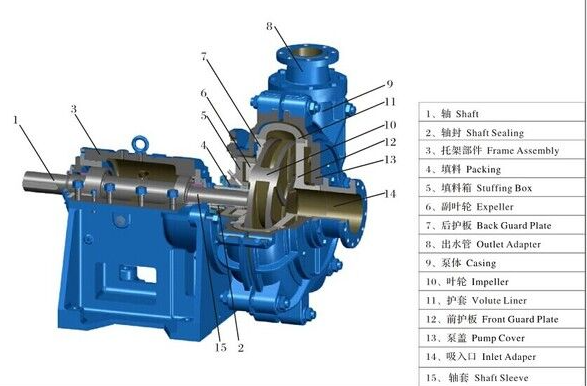

4. Structure Features: Pump Body adopts a double-layer pump shell mechanism. Double-shell pump shell structure is vertical in the open type. The water outlet position can be 45° of an interval, rotating 8 different installations.
5. Outlet diameter: 350mm, 300mm, 250mm, 200mm, 150mm, 100mm, 80mm, 65mm, 50mm, 40mm

Performance Parameter Data of ZJ Slurry Pump

Type	Max  Power of ass. Motor ( KW)	Capacity (m3/h)	Head (M)	Speed (r/ min)	Max eff (%)	NPSH (M)	Handled Particle  Dia. Max (mm)	Weight (kg)
PD350ZJ-I-F100	560	526-2339	14.9-62.8	300-590	77.6	4.4	96	5465
PD350ZJ-I-C104	560	1335-3300.6	36.6-66.9	490-590	77.6	7.3	180	5465
PD350ZJ-I-C100	710	834-3502	11.1-60.0	300-593	73	7.4	160	7120
PD350ZJ-I-A85	710	1025-3741	12.3-62.3	400-742	77.2	10.5	100	5461
PD350ZJ-I-A80	630	837-3575	8.4-56.4	400-742	75.7	10.5	92.8	4920
PD300ZJ-I-A100	450	464-1826	15.3-65.2	300-590	81.1	3	88	5265
PD300ZJ-I-A95	400	441-1735	13.8-58.8	300-590	78.1	3	88	5220
PD300ZJ-I-A90	560	505-1844	21.2-79.9	400-730	82.8	3.9	85	5005
PD300ZJ-I-C90	400	604-2392	10.9-50.9	300-590	78.6	3.6	160	6290
PD300ZJ-I-A85	450	477-1742	18.9-71.3	400-730	79.8	3.8	85	4965
PD300ZJ-I-A70	630	635-2333	16.0-76.8	490-980	80.4	3.9	92	3560
PD300ZJ-I-A65	500	589-2166	13.8-66.2	490-980	77.4	3.7	92	3531
PD300ZJ-I-A56	250	395-1568	9.7-46.0	490-980	80.9	3.5	96	3030
PD250ZJ-I-A103	560	402-1573	29.7-110.5	400-730	74.5	2.8	69	5085
PD250ZJ-I-A96	560	403-1466	25.4-93.7	400-730	77.8	3.5	69	5035
PD250ZJ-I-A90	450	378-1374	22.3-82.4	400-730	73.8	3.4	69	4980
PD250ZJ-I-A85	800	376-1504	30.1-128.7	490-980	76.5	3.5	76	4530
PD250ZJ-I-A83	800	367-1469	28.7-122.7	490-980	75.5	3.5	76	4514
PD250ZJ-I-A80	710	354-1416	26.7-114.0	490-980	73.5	3.4	76	4490
PD250ZJ-I-C80	450	451-1790	7.4-38.3	300-592	75.1	3.3	144	5203
PD250ZJ-I-A78	630	415-1796	21.1-102.5	490-980	71.5	3.2	76	4474
PD250ZJ-I-A75	560	300-1480	20.8-97.5	490-980	77.5	3	72	3480
PD250ZJ-I-A73	500	292-1441	19.7-92.4	490-980	76.5	3	72	3466
PD250ZJ-I-A70	450	280-1381	18.1-84.9	490-980	74.5	2.9	72	3446
PD250ZJ-I-A68	450	272-1342	17.1-80.1	490-980	73.5	2.7	72	3432
PD250ZJ-I-A65	315	299-1249	15.4-71.0	490-980	76.9	3	72	3020
PD250ZJ-I-A63	315	290-1211	14.4-66.7	490-980	75.9	3	72	3008
PD250ZJ-I-A60	280	276-1153	13.1-60.5	490-980	73.9	2.8	72	2991
PD200ZJ-I-A85	560	221-907	32.0-133.7	490-980	70.5	2.8	54	4110
PD200ZJ-I-A75	355	225-900	22.8-102.9	490-980	74.1	3	56	3070
PD200ZJ-I-A73	355	219-876	21.6-97.5	490-980	73.1	3	56	3056
PD200ZJ-I-A70	315	205-976	19.4-86.41	490-980	75.6	2.8	56	2465
PD200ZJ-I-A68	315	199-948	8.3-81.5	490-980	74.6	2.8	56	2453
PD200ZJ-I-A65	250	235-950	16.4-72.0	490-980	79.6	2.5	62	2323
PD200ZJ-I-A63	250	228-921	15.4-67.6	490-980	78.6	2.5	62	2311
PD200ZJ-I-A60	185	218-870	13.9-62.0	490-980	83.5	2.5	62	2223
PD200ZJ-I-A58	185	211-841	13.0-57.9	490-980	82.5	2.5	62	2214
PD200ZJG-I-B45	132	85-538	10.5-72.9	700-1480	68	10.7	28	1531
PD150ZJ-I-A71	220	142-552	21.8-93.8	490-980	69.8	2.4	48	2263
PD150ZJ-I-A70	185	93-401	20.2-91.2	490-980	62.3	2	37	2245
PD150ZJ-I-A65	200	150-600	17.4-75.7	490-980	70.8	2.5	48	2223
PD150ZJ-I-A63	185	146-582	16.3-71.1	490-980	69.8	2.5	48	2211
PD150ZJ-I-A60	160	135-550	14.7-63.5	490-980	75.9	2.5	48	2203
PD150ZJ-I-A58	132	131-532	13.7-59.3	490-980	74.9	2.5	48	2033
PD150ZJ-I-C58	160	134-596	12.8-61.0	490-980	69.1	2	75	2063
PD150ZJ-I-A57	110	95-427	13.2-56.3	490-980	67.8	1.8	32	2023
PD150ZJ-I-A55	110	124-504	12.3-53.4	490-980	72.9	2.3	48	2019
PD150ZJ-I-A50	75	115-460	9.5-43.1	490-980	76.8	2.5	48	1735 (1648)
PD150ZJ-I-A48	75	111-442	8.7-39.7	490-980	75.8	2.5	48	1728 (1641)
PD150ZJG-I-B45	110	105-458	10.9-72.5	700-1480	65.4	7.3	25.6	1576 (1433)
PD150ZJ-I-C42	132	142-550	12.1-62.8	700-1480	77.1	2.2	69	1605 (1518)
PD100ZJ-I-A50	160	85-360	20.5-100.2	700-1480	69.6	2.5	34	1475 (1388)
PD100ZJ-I-A46	132	79-331	17.3-84.8	700-1480	67.6	2.3	34	1461 (1374)
PD100ZJ-I-A42	90	66-275	14.7-70.8	700-1480	71	2.5	35	1075 (1021)
PD100ZJ-I-A39	75	61-255	12.6-61.0	700-1480	39	2.4	35	1064 (1010)
PD100ZJ-I-B42	90	83-365	12.7-66.8	700-1480	71.6	2.5	40	1085 (1031)
PD100ZJG-I-B42	75	45-205	9.7	700-1480	63.2	1.8	18	1080 (990)
PD100ZJ-I-A36	55	61-245	49.5	700-1480	71.6	2	32	1010 (956)
PD100ZJ-I-A33	45	56-225	8.2-41.6	700-1480	69.6	1.8	32	1003 (949)
PD80ZJ-I-A52	160	51-242	22.1-109.8	700-1480	56.3	2.1	21	1465 (1378)
PD80ZJ-I-A42	75	61-204	14.4-70.4	700-1480	66.7	2.5	24	1053 (963)
PD80ZJ-I-A39	55	57-189	12.4-60.7	700-1480	64.7	2.4	24	1042 (952)
PD80ZJ-I-A36	45	46-190	9.6-51.4	700-1480	67.7	2.5	24	980 (926)
PD80ZJ-I-A33	37	43-174	8.0-43.2	700-1480	65.7	2.3	24	973 (919)
PD65ZJ-I-A30	15	23-79	7.4-34.8	700-1460	63.5	2	19	504 (512)
PD65ZJ-I-A27	11	20-71	6.0-28.2	700-1460	61.5	1.8	19	500 (508)
PD50ZJ-I-A50	90	27-111	22.3-110.7	700-1480	45.1	3	13	1378
PD50ZJ-I-A46	55	23-94	17.9-85.8	700-1480	44.7	1.4	14	1082 (992)
PD50ZJ-I-A33	18.5	12-54	7.7-42.5	700-1480	42.1	2.9	13	537 (545)
PD40ZJ-I-A19	15	8.0-34.9	12.8-57.1	1430-2930	58.8	1.3	11	173
PD40ZJ-I-A17	7.5	4.5-23.4	9.1-44.6	1400-2900	52.4	2.5	11	121 (127)
