QGL High Air Pressure DTH Hammer Bits

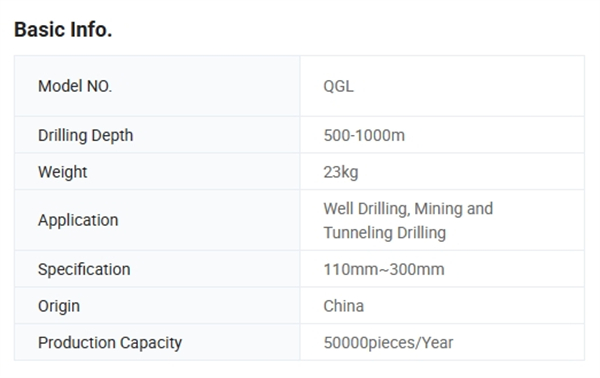

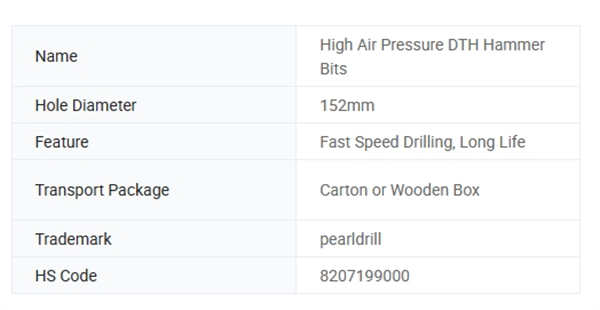

  • Standard:API
  • Length:Stub-length
  • Material:High Speed Steel
  • Usage:Well Drilling
  • If you are interesting at QGL High Air Pressure DTH Hammer Bits,you can contact us with the inquiry button.
  • INQUIRY      whatsapp  WhatsApp

Description of QGL High Air Pressure DTH Hammer Bits

QGL High Air Pressure <a href=https://www.gzpearldrill.com/en/DTH-HAMMER-BITS.html target='_blank'>DTH hammer</a> BitsQGL High Air Pressure DTH Hammer Bits

Product Description

PEARLDRILL has a comprehensive range of DTH drill bits to match all conceivable applications. Each bit is made from quality alloy steel, and has been precision machined to produce a perfect body, heat treated to the required hardness, given surface compression for fatigue resistance, and fitted with precision buttons manufactured in-house. These are deigned for specific applications for all rock types, hardness's and condition. Bit life and rate of penetration are the most important criteria in selecting the right bit for a particular application.

QGL High Air Pressure DTH Hammer Bits

QGL High Air Pressure DTH Hammer BitsQGL High Air Pressure DTH Hammer Bits

DTH Drill bit features:
Fast drilling and retrieval!High efficiency, low labor intensity of workers!
DTH Drill bit usage:
Widely used in earth and stone engineering mining Wells drilling construction projects drilling Wells edge pillar support.
DTH Drill bit model:
Medium/Low wind pressure DTH Drill bit:80 90 100 110 120 130 140 150 180 185 200 220

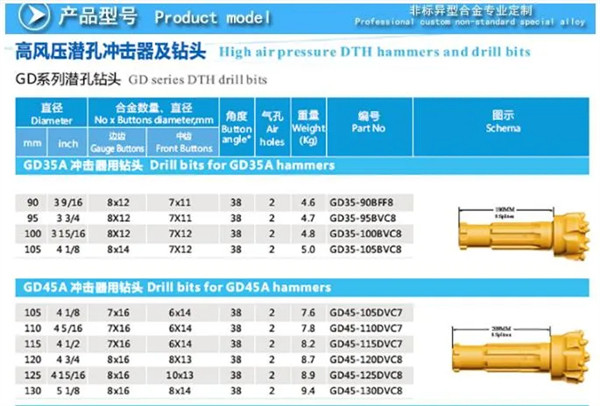

High wind pressure DTH Drill bit:115 127 138 152 165 178 195 203 216 240 254 304
DTH Drill bit type:
Medium/Low wind pressure DTH Drill bit,High wind pressure DTH Drill bit
DTH hammer model:
Medium/low wind pressure DTH hammer:CIR65 CIR70 CIR90 CIR110 CIR130 CIR150 CIR170 CIR200
High wind pressure DTH hammer:DHD340 DHD350 DHD360 DHD380 N125 SD12

QGL High Air Pressure DTH Hammer Bits

DTH HAMMER application scope:
Widely used in metallurgical, coal, chemical, building materials are not busy mines and water conservancy, hydropower, highway and railway defense construction projects, etc. Suitable for dry wind water mixing and shotgun-hole water gushing wet operation, reliable performance, is the ideal drilling hole and rock drilling equipment.

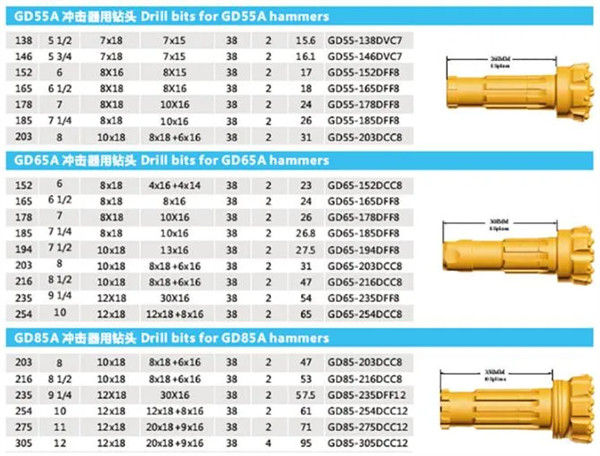

Drill Diameter The connection specification Alloy (star) Stomates Weight(KG) Notes
50 29×4 5 1 1 With type 50 hammer
65 37×4 6 1 1.4 With type 60 hammer
76 44×4 8 2 2.2 With type 70 hammer
80 50×6 8 2 3.2 With type 80 hammer
90 54×6 10/11 2/3 3.9 With type 90 hammer
100 54×6 10/11 2/3 4.1 With type 90 hammer
110 54×6/60×4/65×6 13 2/3 6.0 With type 90/100B/110 hammer
120 54×6/60×4/65×6 12/13 2/3 6.2 With type 90/100B/110 hammer
130 54×6/60×4/65×6 15 3 7.2 With type 90/100B/110 hammer
140 60×4/65×6 15 3 7.9 With type 100B/110 hammer
145 60×4/65×6 16 3 8.2 With type 100B/110 hammer
150 60×4/65×6/90×6 16/20 3 8.6-19.8 With type 100B
/110/150 hammer
160 65×6/90×6 20/21 3 19.3 With type 110/150 hammer
170 65×6/90×6 20 3 19.8 With type 110/150 hammer
175 65×6/90×6 20/21 3 20 With type 110/150 hammer
180 65×6/90×6 20 3 21.6 With type 110/150 hammer
200 90×6 20 3 24 With type 150 hammer
105 64×8 13 2 8 With type 340 hammer
115 64×8 13 2 8.5 With type 340 hammer
140 82×8 14 2 12 With type 350 hammer

QGL High Air Pressure DTH Hammer Bits

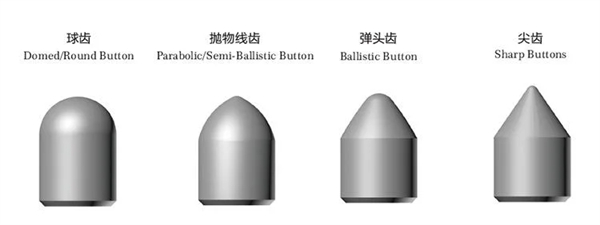

The ball tooth:
It is mainly used for DTH drill bit edge teeth, suitable for very hard rocks with strong abrasivity.
Parabolic tooth:
It is mainly used in DTH drill bit side and middle teeth, suitable for rocks with medium and hard wear.
Warhead tooth:
It is mainly used in DTH drill bit middle teeth, suitable for abrasive medium hardness medium rocks. The soft rock can also be made edge teeth.
Sharp tooth:
Mainly used in DTH drill bit middle teeth, suitable for soft rocks with high drilling speed and low tooth fracture rate.

DTH hammer bits benefits

1.Due to the special internal structure of the DTH hammer designed according to the latest drilling theory, it can provide the maximum energy for the bit, with high drilling speed and low gas consumption.
2.Due to the use of high-quality alloy steel materials and advanced processing technology, the performance of DTH hammer is stable and its service life is long.
3.Because of the simple and reliable internal structure, the hammer is easy to disassemble, low failure rate and easy to maintain.
4.Due to the multi thread connection of chuck and hydraulic cylinder, it is easy to separate the drill from the hammer.
5.Interchangeable with DTH bit and drill pipe.Our company provides low pressure DTH Drill bits and off center DTH Drill bits.
We can make different specifications and different forms of alloy ball bit according to different needs of users.It is widely used in mining, tunnel excavation, underground plant excavation and other construction sites.It is an ideal substitute for the same type of ball bit abroad, with stable quality and high cost performance.
