Description of HH High Head Slurry Pump PD4/3E-HH

HH high head slurry pumps widely used for wet crushers, SAG mill discharge, ball mill discharge, rod mill discharge, Ni acid slurry, coarse sand, coarse tailings, phosphate matrix, minerals concentrate, heavy media, dredging, bottom/fly ash, lime grinding, oil sands, mineral sands, fine tailings, phosphoric acid, coal, flotation, sugar beets, process chemical, pulp and paper, FGD, waste water etc.



Feature:


1. Ductile iron fully lined casing provides durability, strength and long service life.

2. Multi-stage high pressure operation to 750 psi.

3. Heavy duty construction with through-bolt design provides ease of maintenance and minimal downtime.

4. Large diameter, slow turning, high efficiency impellers designed to achieve maximum wear life and low operating costs.

5. Large, open internal passages designed to maximize wear life and lower operating costs.

6. Thick elastomer and alloy liners provide superior corrosion resistance and maximum wear life.

7. Full flush gland, low flow, and dry running centrifugal seals reduce flush water usage minimizing electric slurry pump operating costs.

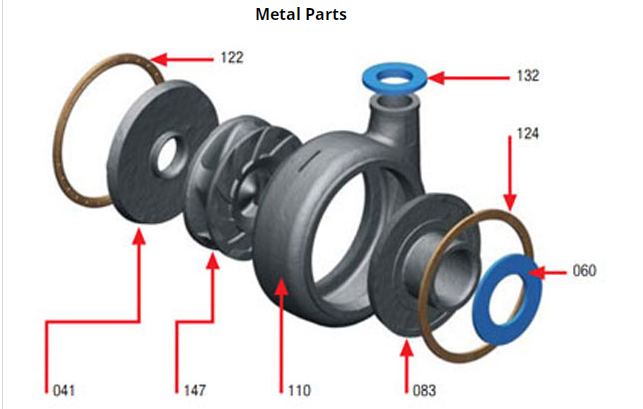

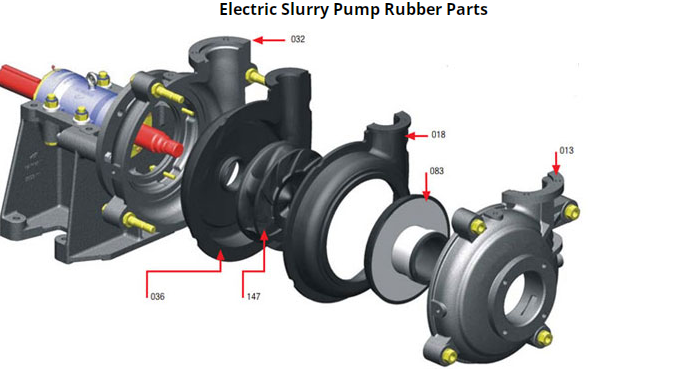

Main Part Number At The Drawing

032:Frame Plate 122: Stuffing Box Seal
060: Intake Joint 036: Frame Plate Liner
132:Discharge Joint 013:Cover Plate
083:Throatbush 018:Cover Plate Liner
110:Volute Liner 124: Volute Cover Seal
147: Impeller 041: Frame Plate Liner Insert

Performance Parameter Data of ZJ Slurry Pump

Model Clear Water Performance Impeller
Max. Power Capacity Q Head H Speed n Eff. η NPSH Vane No. Impeller Dia.
(kw) (m3/h) (m) (rpm) (%) (m)
PD1.5/1C-HH 30 16.2-34.2 25-92 1400-2200 20 2–5.5 5 330
PD3/2D-HH 60 68.4-136.8 25-87 850-1400 47 3-7.5 5 457
PD4/3E-HH 120 126-252 12-97 600-1400 50 2-5 5 508
PD6/4F-HH 560 324-720 30-118 600-1000 64 3-8 5 711
PD8/6S-HH 560 468-1008 20-94 500-1000 65 4-12 5 711
