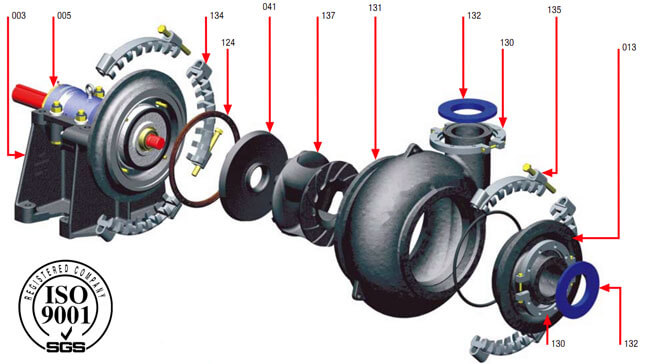

Construction of G Gravel pump
Main Part Number At The Drawing
134: Adapter Plate Clamp Ring 124：Volute Cover Seal

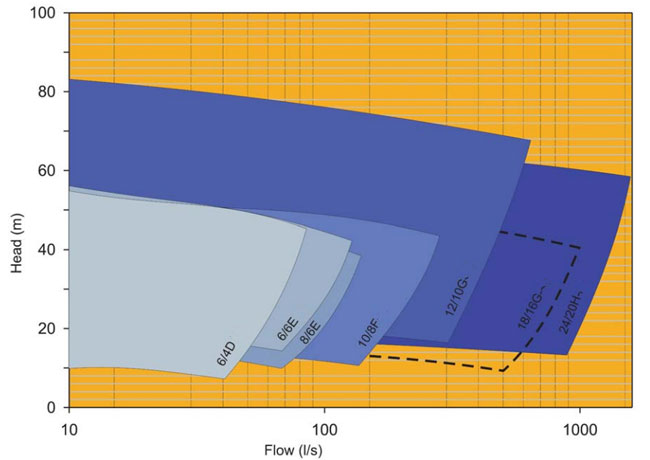

GRAVEL PUMP SELECTION CHART

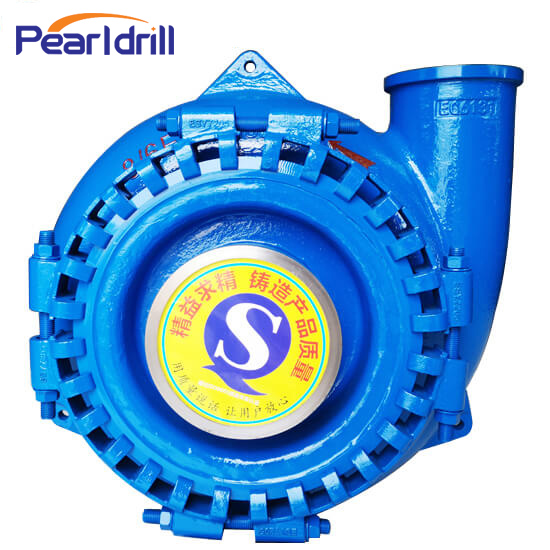

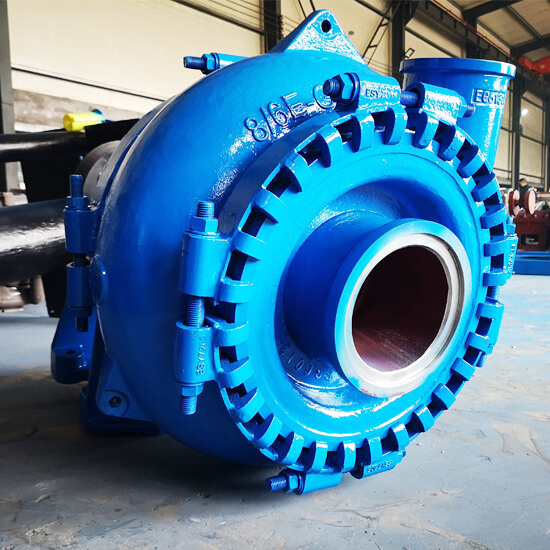

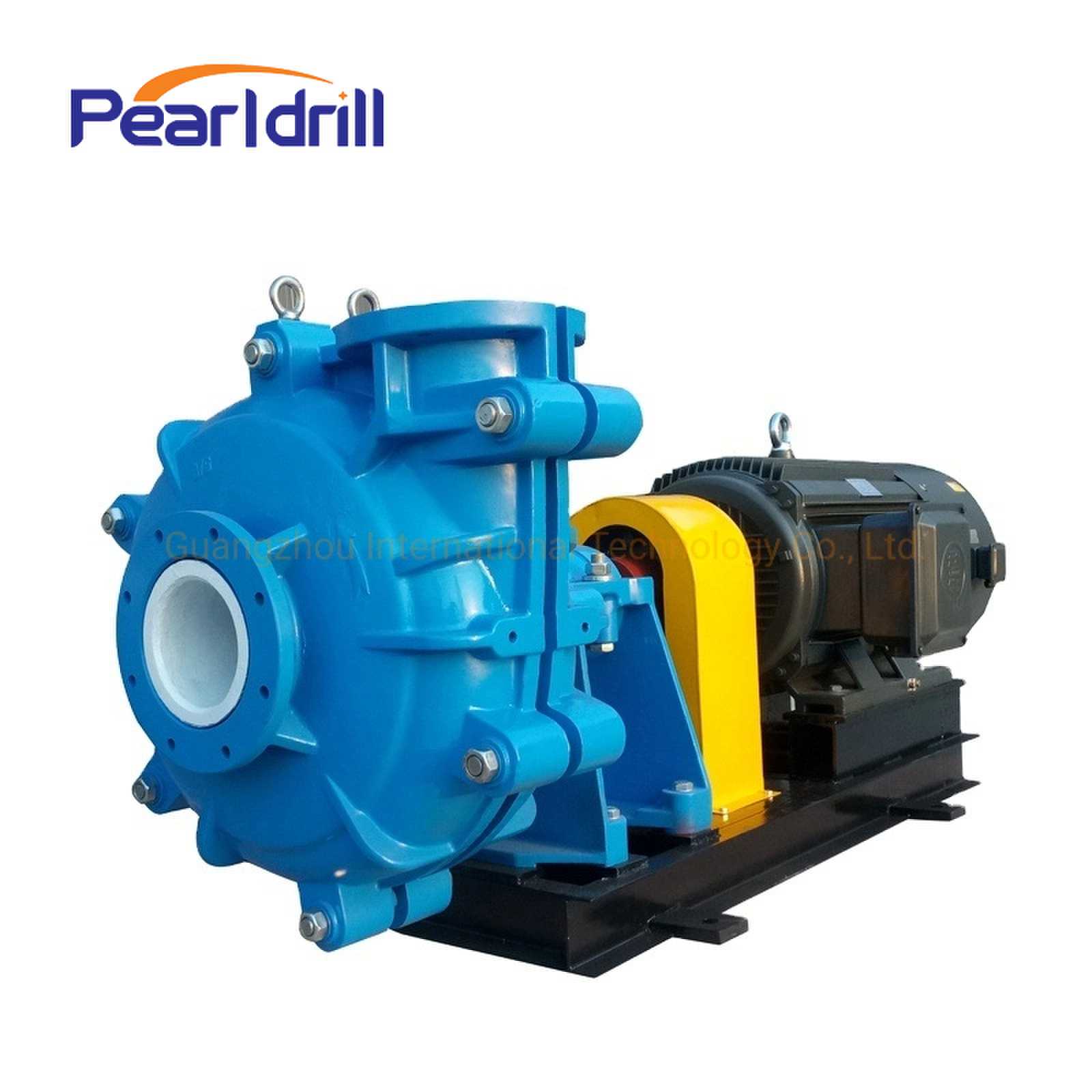

8x6e-g gravel pump is suitable for handling large grain materials with high efficiency and low cost. The casing is designed with a large internal profile to reduce associated speeds and extend the life of the components. Designed to pump aggressive mud with a wide grain distribution, a series of G series gravel components and a variety of material combinations of dredgers and gravel pumps.
Model
Max. Power P
(kw)
Capacity Q
(m3/h)
Head H
(m)
Speed n
(r/min)
Eff. η
(% )
NPSH
(m)
Impeller Dia.
(mm)
6/4D-G
60
36-250
5-52
600-1400
58
2-5.5
378
6/4E-G
120
36-250
5-52
600-1400
58
2-5.5
378
8/6E-G
120
126-576
6-45
800-1400
60
3-4.5
391
10/8S-G
560
216-936
8-52
500-1000
65
3-7.5
533
10/8S-GH
560
180-1440
24-80
500-950
72
2.5-5
711
10/8F-G
260
216-936
8-52
400-800
65
3-7.5
533
12/10F-G
260
360-1440
10-60
350-700
65
1.5-4.5
667
12/10G-G
600
360-1440
10-60
400-850
65
1.5-4.5
667
12/10G-GH
600
288-2808
16-80
350-700
73
2-10
950
14/12G-G
600
576-3024
8-70
300-700
68
2-8
864
14/12T-G
1200
576-3024
8-70
300-700
68
2-8
864
16/14G-G
600
720-3600
18-45
300-500
70
3-9
1016
16/14T-G
1200
720-3600
18-45
300-500
70
3-9
1016
16/14TU-GH
1200
324-3600
26-70
300-500
72
3-6
1270
18/16TU-G
1200
720-4320
12-48
250-500
72
3-6
1067
G/GH heavy-duty sand & gravel pump design typically caters for high head high volume duties, The Gravel pumps are best suited to Sand & Gravels, Dredging, Cutter Suction Dredger, Sand Excavation, Coal Washing, Tunnels, Power Plant, Mineral Processing Plants, Higher head cyclone feed or Long distance pipeline duties and Other industries.
