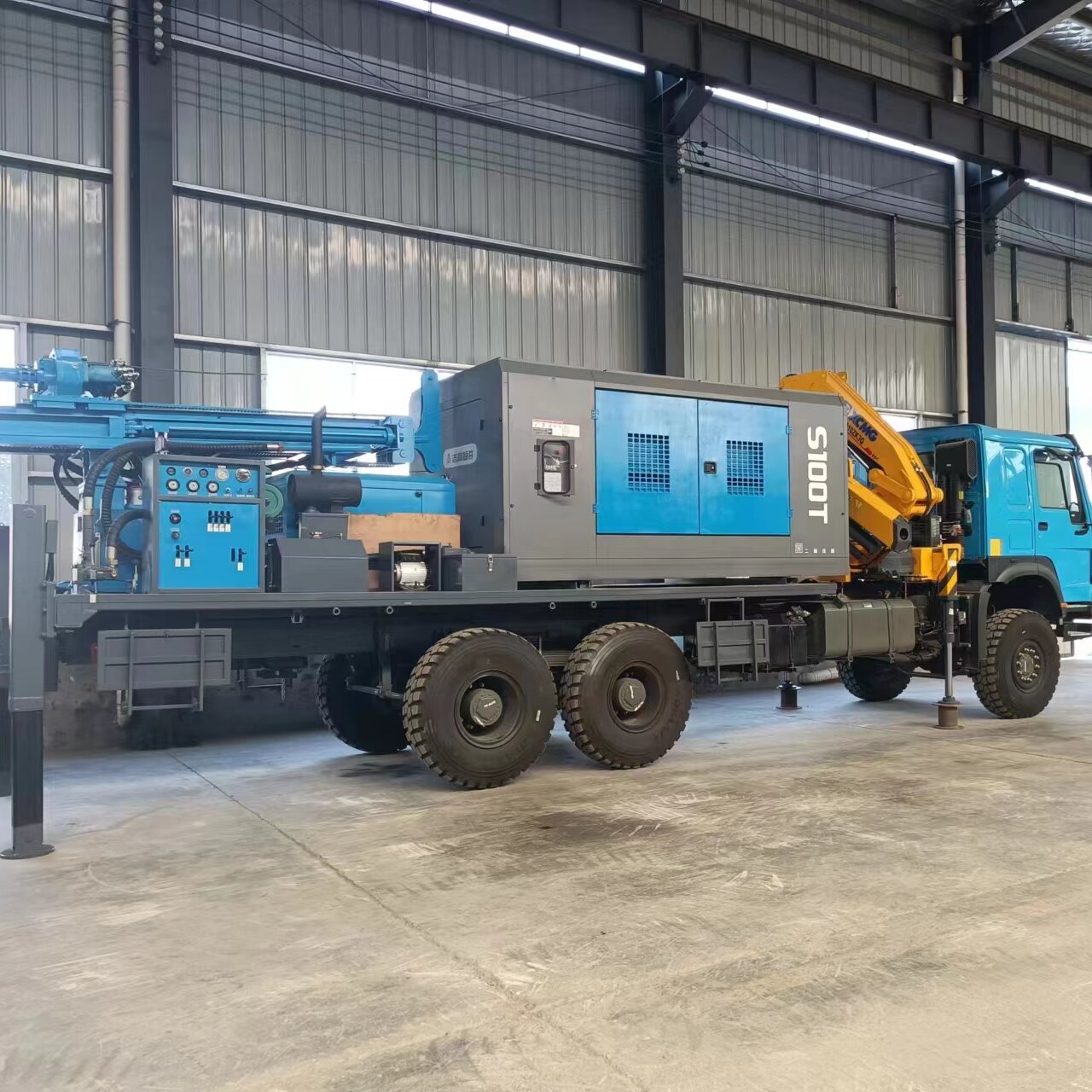

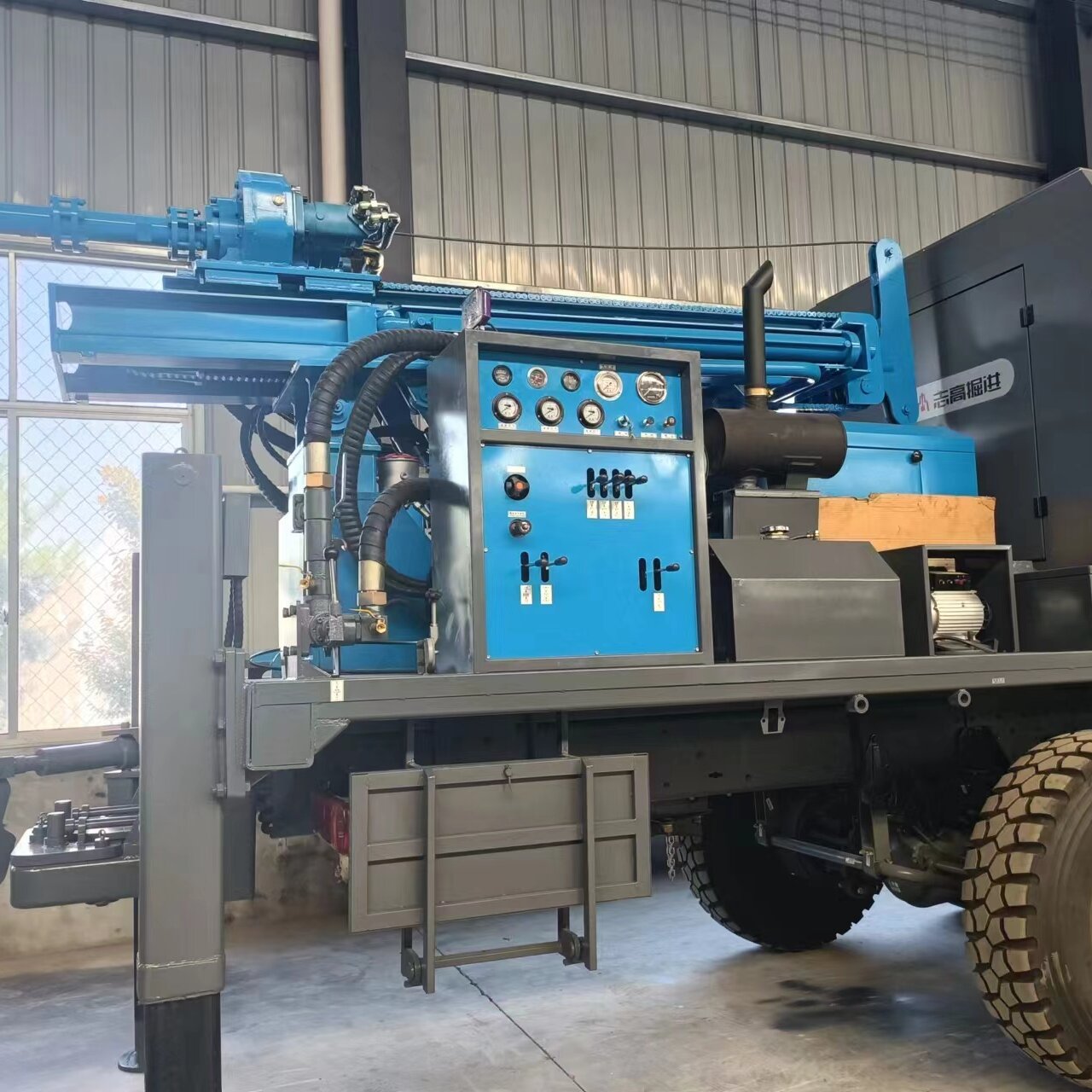

600m deep truck mounted water well drilling rig

Description of 600m deep truck mounted water well drilling rig

Product Description

JL500 large truck mounted water well Drilling Rig is a new model independently developed and produced by our factory on the basis of learning from the advanced technology of similar models at home and abroad;
The drilling rig has reasonable design, complete supporting facilities, superior performance, and dual power system of compressor and Mud Pump, which is easy to operate and maintain;
Dongfeng locomotive, 6×4 chassis, with first-class quality; the power head is driven by a low-speed high-torque motor, with stepless speed regulation, advanced and simple structure; oil cylinder wire rope two-speed feeding system, stable and reliable movement; the whole machine has a low center of gravity and good stability; The overall shape is beautiful, reflecting the people-oriented design concept;
The main parts of the drilling rig adopt the optimized procurement policy at home and abroad, and the compressors, diesel engines, hydraulic pumps, main valves, motors and key hydraulic parts are all selected from well-known brands;
The large torque, high power configuration, reasonable structure design and advanced operation mode of the drilling rig ensure the efficient construction of the drilling rig;
The low pollution emission and professional noise reduction design of the rig diesel engine make the rig fully applicable to various construction sites;
The machine is beautiful in appearance, compact in structure, reliable in performance and flexible in operation, and is currently the first choice for medium-sized projects in the domestic vehicle-mounted drilling rig market;
The drilling rig can drill in quaternary formations such as clay layer, sand layer, weathered rock, bedrock and so on. The drilling rig is mainly used for hydrogeological investigation, drilling of industrial and agricultural water wells, construction of underground tunnels and ventilation holes, especially the drilling of geothermal heating holes. It can be constructed by various techniques such as air drilling and foam rotary drilling.

Product Specifications

Product number	SPD300A
Maximum hole depth	600M
Drilling diameter	300MM--1500MM
Working wind pressure	1-3.45MP
Total gas consumption	16-30 m3/min
Drill pipe length	3M
Drill pipe diameter	50-89MM
Axial pressure	6T
Lifting force	20T
Swing torque	2000-7000Nm
Rotation speed	0-80 rpm
Supporting power	50kw/FAW Engineering Engine
Bearing method	Hydraulic rubber track chassis
Walking speed	2.5kN/h
Gradeability	16.
Dimensions	3.8*1.7*2.2M
Total Weight	5T
