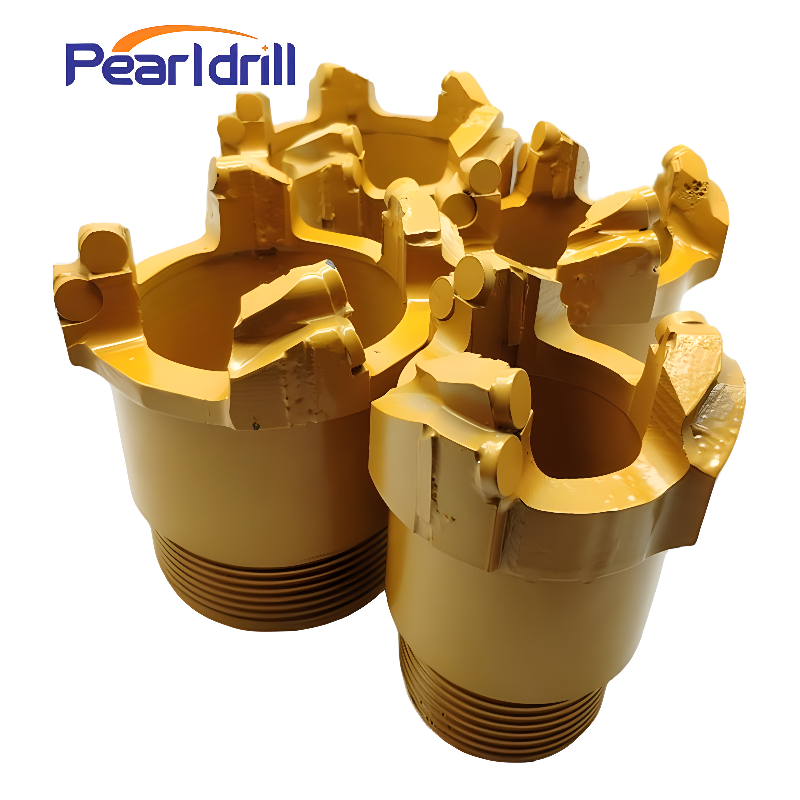

What is a PDC bit?

A PDC bit, or Polycrystalline Diamond Compact bit, is a type of drill bit used in the oil and gas industry and other drilling applications. It is designed to drill through various types of rock formations, including hard and abrasive formations.

The PDC bit is named after its cutting structure, which consists of a layer of polycrystalline diamond (PCD) material bonded to a tungsten carbide substrate. The PCD layer is made up of tiny synthetic diamond particles that have been chemically bonded together under high pressure and temperature. This arrangement creates a very hard and wear-resistant cutting surface.

The PDC bit's cutting action is primarily achieved through the shearing action of the diamond cutters on the rock formations. As the bit rotates, the PCD cutters grind and scrape the rock, breaking it into small chips or cuttings. The cuttings are then flushed out of the borehole by drilling fluid circulated through the drill string.

PDC bits are known for their high rate of penetration (ROP) and durability compared to other types of drill bits. They can be used in a wide range of drilling applications, including vertical, deviated, and horizontal wells. PDC bits are especially effective in drilling through formations such as shale, limestone, sandstone, and other hard and abrasive rocks. The design and configuration of PDC bits can vary based on specific drilling requirements and the characteristics of the formations being drilled.
