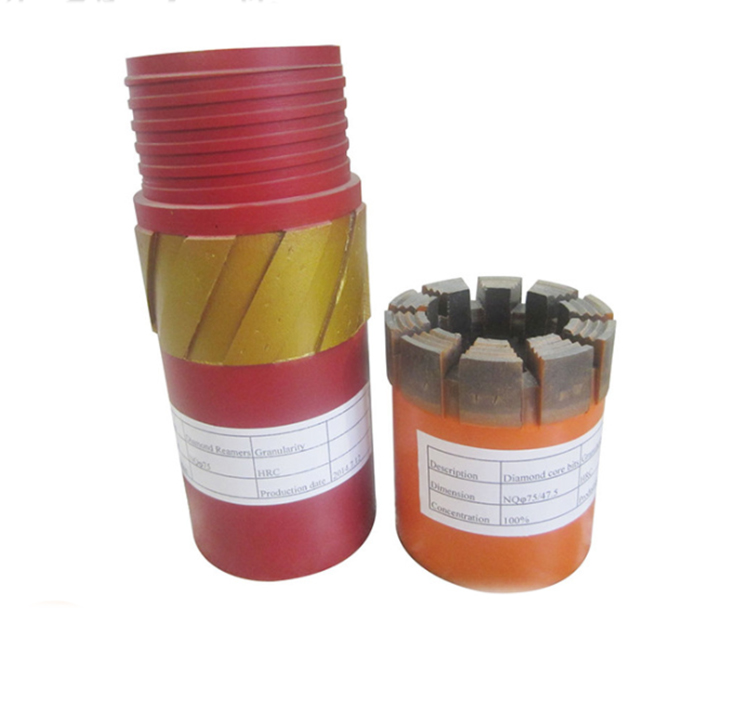

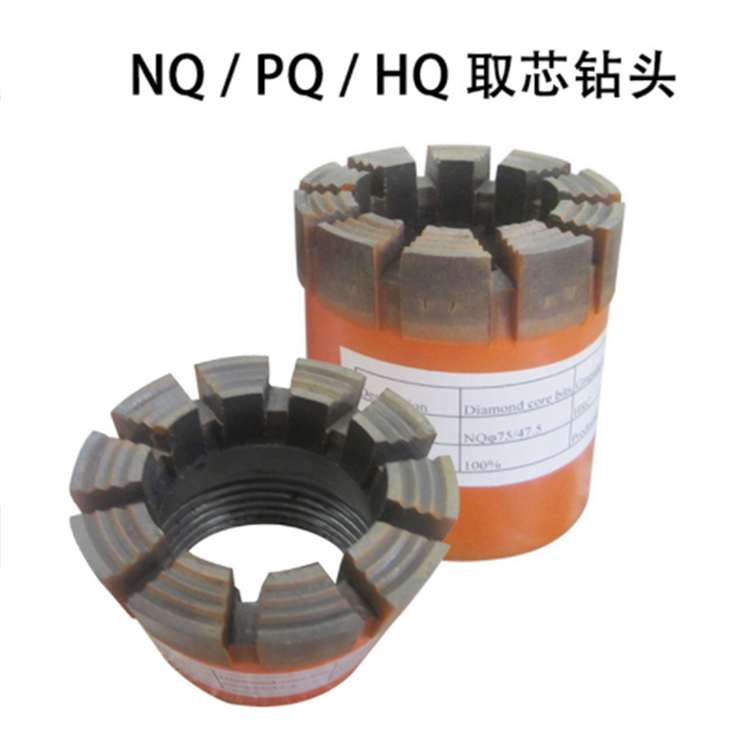

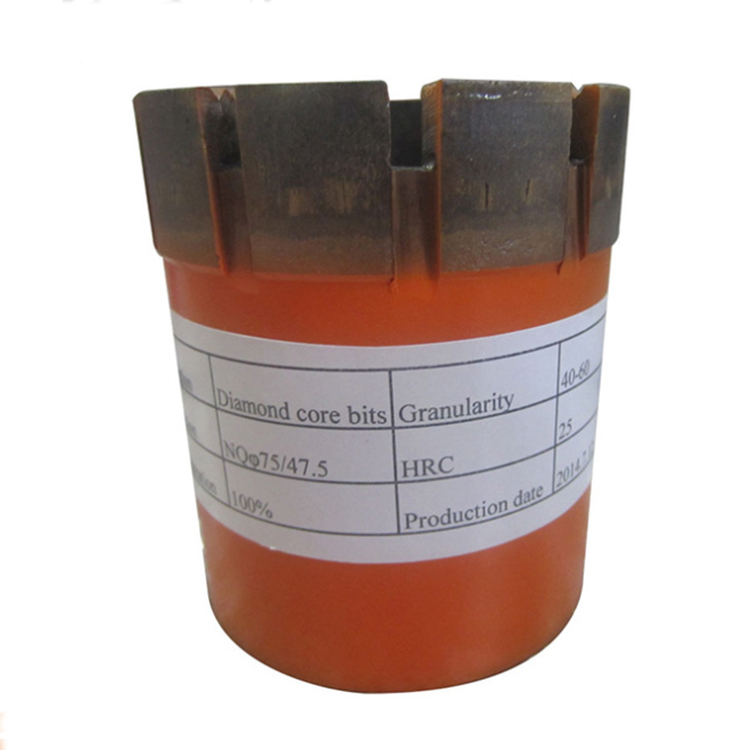

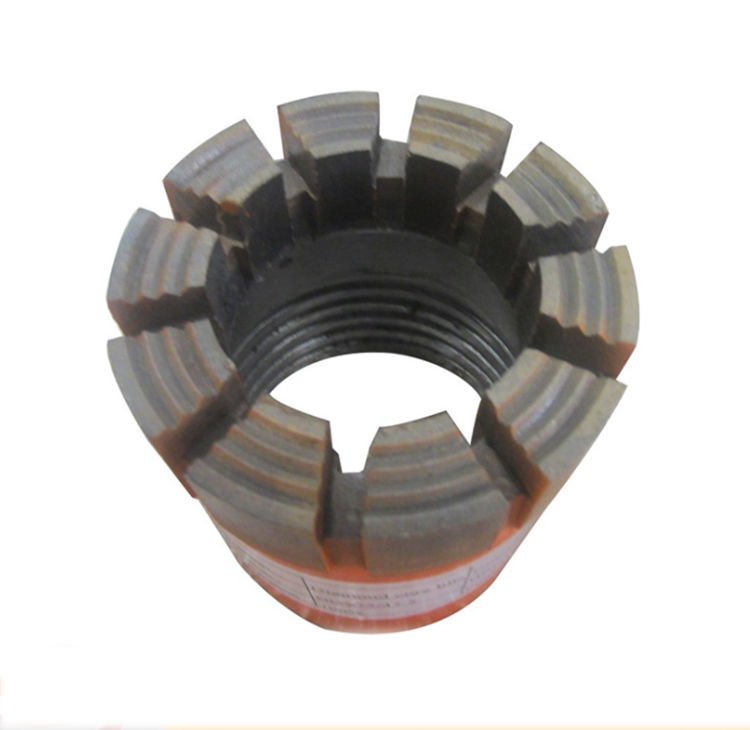

NQ Impregnated diamond bit
Introduction:
NQ Impregnated diamond bit is a cutting tool that embeds diamond fragments on the base material of the drill bit body and selects high-quality synthetic diamonds to be distributed in different depths of the bit body according to grades. The matrix layer of the dental crown also contains these crystals. The crystals are evenly embedded in the metal powder. This diamond tool is widely used in the mineral exploration industry.
size:
The substrate heights that can be supplied are 6mm, 8mm, 9mm, 10mm, 12mm, and 14mm.
Features and advantages:
1.Mine
2.Fast footage
3.long life
4.International standard
5.Factory direct sales
6.Support customization
n Wire line core drill bit and reaming shell

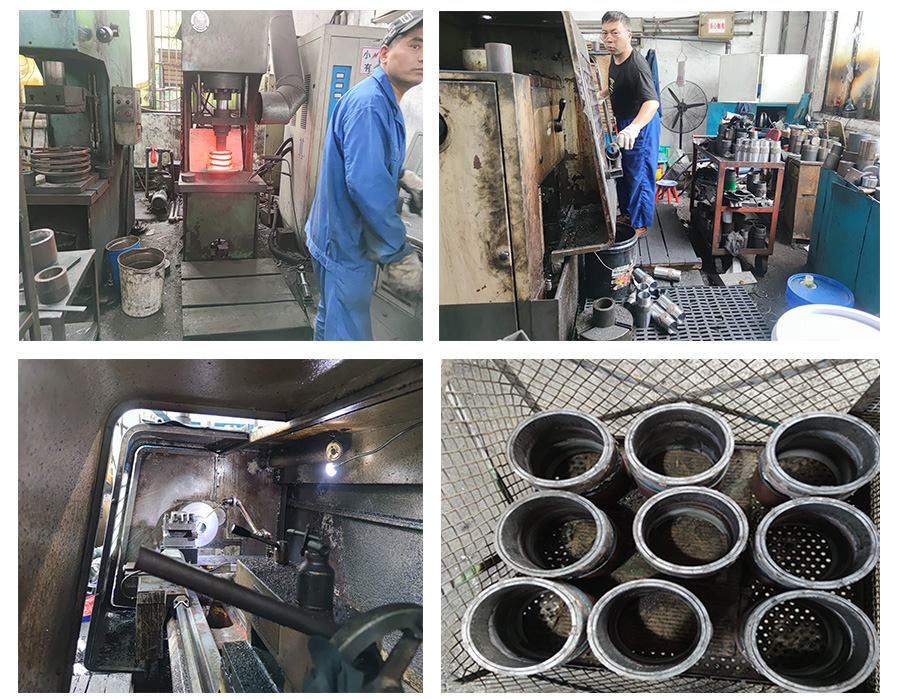

Developed by our company is mainly engaged in impregnated diamond bit for more than 20 years, formula design of rock bit drilling technology structure technology has a deep understanding of the product application areas include: engineering survey and geological prospecting concrete core pulling test pile soil survey.
—Product Advantages —
| Commonly used specifications | |
| Q Series rope coring | NQ,NQ3,HQ,HQ3,PQ,PQ3 |
| T2 Series double tube | T2-66,T2-76 |
| T6 Series double tube | T6-76,T6-101 |
| DCDMA-Casing shoe | NW,HW |
| B series of single pipe | B-76 |
| MLC Double pipe series | NMLC,HMLC |
| TW Thin-walled rope coring | BTW,NTW |
—PRODUCT SPECIFICATION —
n Single pipe bit and reaming shell
---B series B series Single pipe bit and reaming shell，It is often used in cases where the core preservation requirements are not high and for concrete core extraction。 Main specifications：36、46、56、66、76、86、101、116、131 |
---Z series Z series Single pipe bit and reaming shell，Thicker and more impact resistant than B Series。 Main specifications： 46、56、66、76、86、101、116、131、146 |
---WG series WG series Single pipe bit and reaming shell。 Main specifications：EWG、AWG、BWG、NWG、HWG |
---WT series WT series Single pipe bit and reaming shell。 Main specifications：BWT、NWT、HWT |
--- China Standard Main specifications：47、56、59、75、91、110、130、150、170、225、275 |
n Double tube drill bit and reaming shell
---T2 series T2 series is thin-wall Double pipe drilling tool，Used for surface drilling, especially for prospecting。Because of their thin walls, these tools provide fast drilling speed。 Main specifications：：36，46，56，66，76，86，101 |
---T6 series The T6 Series Double pipe Drilling Tool is an extension of the T2series，With a more reliable design。Larger diameters can be used for surface prospecting and geological engineering investigations。 Main specifications：76，86，101，116，131，146 |
---TT series TT Series is an ultra-thin-wall Double pipe drilling tool with a very thin cutting surface that enables very fast drilling in hard formations。Suitable for use in underground drilling。 Main specifications：46、56 |
---LTK 48 & LTK 60 series LTK Series is a drill string with thinner walls than T2 Series，It is specially designed for obtaining the best footage and core-rate in medium to super hard rock, with good economic benefit and high productivity。Main specifications：48，60 |
---WF series The WF Series Double Pipe Drilling Tool is widely used in engineering investigations and was originally designed for core-taking with a bottom jet bit in soft formations。They are simpler and more durable than thin-wall tools, but they drill more slowly。Main specifications：HWF、PWF、ZWF、UWF、ZWF |
---WG series Main specifications：EWG、AWG、BWG、NWG、HWG
|
---WM series Main specifications：EWM、AWM、BWM、NWM |
---WT series Main specifications：RWT、EWT、AWT、BWT、NWT、HWT |
--- MLC Bottom-spraying series Main specifications：NMLC、HMLC |
---China Standard Main specifications：36、47、56、59、75、91、110 |
n Wire line core drill bit and reaming shell
--- Q Series Wire line core is mainly used for deep hole coring. Main specifications：AQ、BQ、NQ、HQ、PQ Bottom spray type：NQ3、HQ3、PQ3、SQ3 |
--- TW Thin-Wall Series is used for shallow hole drilling, especially for geological prospecting。The thin wall provides fast drilling speed and is suitable for portable drills。 Main specifications：BTW、 NTW |
---China Standard Main specifications：59、75、91（95） |
n Casing shoe drill bit、Casing shoe、Drill rod shoe
---W series Casing shoe drill bit、Casing shoe Main specifications：RW、EW、AW、BW、NW、HW、PW、ZW、UW、ZW |
---X series Casing shoe drill bit、Casing shoe Main specifications：RX、EX、AX、BX、NX、HX、PX、ZX、UX、ZX |
--- The metric system series Casing shoe drill bit、Casing shoe Main specifications：46、56、66、76、86、101、116、131、146 |
---Q series Drill rod shoe Main specifications： NQ、HQ、PQ |
---TW series thin-wall Drill rod shoe Main specifications：NTW |
---China Standard Casing shoe Main specifications：91、110、130、150、170 |
