168 Eccentric drilling tools
Pipe shed _ pit anchor cable _ dewatering well _ grouting hole

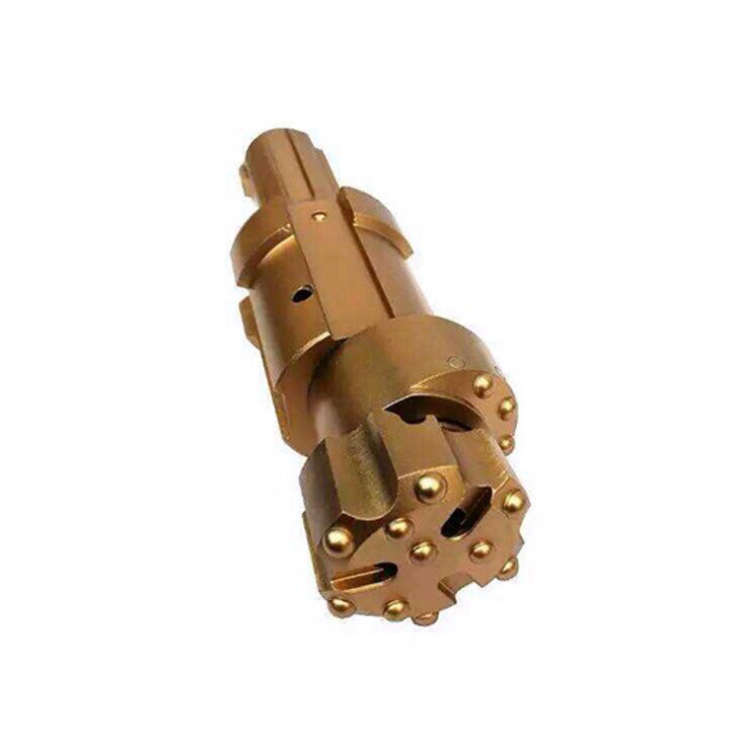

Eccentric drilling tools are mainly used in: hard loose broken or gravel, etc.
It is necessary to follow up the formation of casing at the same time, which has the advantage of good wall protection performance and high drilling efficiency。
1. High drilling efficiency
2. Eliminate hole burrow
3. The hole does not bend out of shape
High air pressure eccentric heel tube drilling tool：Φ108Φ127Φ146Φ158Φ168Φ178Φ219Φ245Φ273Φ323
Low wind pressure eccentric heel tube drilling tool：Φ108Φ127Φ146Φ158
Concentric drilling tools：108 114 127 140 146 168 178 183 194 219 273 324 406
Special models can be customized
Eccentric heel tube drilling tool parameters:
DTH Drill bit features：
Fast drilling and retrieval!High efficiency, low labor intensity of workers！
DTH Drill bit usage:
Widely used in earth and stone engineering mining Wells drilling construction projects drilling Wells edge pillar support.
DTH Drill bit model：
Medium/Low wind pressure DTH Drill bit：80 90 100 110 120 130 140 150 180 185 200 220
High wind pressure DTH Drill bit：115 127 138 152 165 178 195 203 216 240 254 304
DTH Drill bit type：Medium/Low wind pressure DTH Drill bit,High wind pressure DTH Drill bit
DTH hammer model:
Medium/low wind pressure DTH hammer：CIR65 CIR70 CIR90 CIR110 CIR130 CIR150 CIR170 CIR200
High wind pressure DTH hammer：DHD340 DHD350 DHD360 DHD380 N125 SD12
DTH HAMMER application scope：
Widely used in metallurgical, coal, chemical, building materials are not busy mines and water conservancy, hydropower, highway and railway defense construction projects, etc. Suitable for dry wind water mixing and shotgun-hole water gushing wet operation, reliable performance, is the ideal drilling hole and rock drilling equipment.
DTH HAMMER application scope：
When the impact stroke begins, piston and disc are in the upper position, air pressure passes through radial holes in the bonnet and seat into the upper chamber of the cylinder, push the piston down at high speed to impact the drill bit. When the piston goes to the spline keyway of the bushing is closed, Pressure in the lower cavity begins to rise, the center hole at the top of the piston leaves the valve rod, ventilate the upper chamber, drop in pressure end of work trip. When the piston hits the end of the bit, because of the upper and lower pressure difference, the valve disc reverses and the piston returns to the stroke repeatedly.
— DTH hammer bits benefits —
The connection specification | Alloy (star) | Stomates | Weight（KG） | Notes | |
50 | 29×4 | 5 | 1 | 1 | With type 50 hammer |
65 | 37×4 | 6 | 1 | 1.4 | With type 60 hammer |
76 | 44×4 | 8 | 2 | 2.2 | With type 70 hammer |
80 | 50×6 | 8 | 2 | 3.2 | With type 80 hammer |
90 | 54×6 | 10/11 | 2/3 | 3.9 | With type 90 hammer |
100 | 54×6 | 10/11 | 2/3 | 4.1 | With type 90 hammer |
110 | 54×6/60×4/65×6 | 13 | 2/3 | 6.0 | With type 90/100B/110 hammer |
120 | 54×6/60×4/65×6 | 12/13 | 2/3 | 6.2 | With type 90/100B/110 hammer |
130 | 54×6/60×4/65×6 | 15 | 3 | 7.2 | With type 90/100B/110 hammer |
140 | 60×4/65×6 | 15 | 3 | 7.9 | With type 100B/110 hammer |
145 | 60×4/65×6 | 16 | 3 | 8.2 | With type 100B/110 hammer |
150 | 60×4/65×6/90×6 | 16/20 | 3 | 8.6-19.8 | With type 100B /110/150 hammer |
160 | 65×6/90×6 | 20/21 | 3 | 19.3 | With type 110/150 hammer |
170 | 65×6/90×6 | 20 | 3 | 19.8 | With type 110/150 hammer |
175 | 65×6/90×6 | 20/21 | 3 | 20 | With type 110/150 hammer |
180 | 65×6/90×6 | 20 | 3 | 21.6 | With type 110/150 hammer |
200 | 90×6 | 20 | 3 | 24 | With type 150 hammer |
105 | 64×8 | 13 | 2 | 8 | With type 340 hammer |
115 | 64×8 | 13 | 2 | 8.5 | With type 340 hammer |
140 | 82×8 | 14 | 2 | 12 | With type 350 hammer |
—DTH hammer bits benefits —
The ball tooth：
It is mainly used for DTH drill bit edge teeth, suitable for very hard rocks with strong abrasivity.
Parabolic tooth:
It is mainly used in DTH drill bit side and middle teeth, suitable for rocks with medium and hard wear.
Warhead tooth:
It is mainly used in DTH drill bit middle teeth, suitable for abrasive medium hardness medium rocks. The soft rock can also be made edge teeth.
Sharp tooth:
Mainly used in DTH drill bit middle teeth, suitable for soft rocks with high drilling speed and low tooth fracture rate.
—DTH hammer bits benefits —
1.Due to the special internal structure of the DTH hammer designed according to the latest drilling theory, it can provide the maximum energy for the bit, with high drilling speed and low gas consumption.
2.Due to the use of high-quality alloy steel materials and advanced processing technology, the performance of DTH hammer is stable and its service life is long.
3.Because of the simple and reliable internal structure, the hammer is easy to disassemble, low failure rate and easy to maintain.
4.Due to the multi thread connection of chuck and hydraulic cylinder, it is easy to separate the drill from the hammer.
5.Interchangeable with DTH bit and drill pipe.Our company provides low pressure DTH Drill bits and off center DTH Drill bits.
We can make different specifications and different forms of alloy ball bit according to different needs of users.It is widely used in mining, tunnel excavation, underground plant excavation and other construction sites.It is an ideal substitute for the same type of ball bit abroad, with stable quality and high cost performance.
